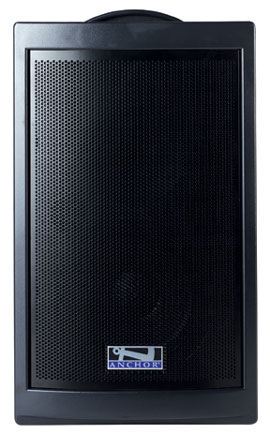

Liberty Sound System

Liberty is a battery powered sound system designed for crowds up to 1,000 people with its 117dB of clear sound. Liberty is used at the White House for Presidential press conferences, at thousands of schools around the world, at corporate training centers and on every U.S. aircraft carrier. Liberty is rugged, reliable, and crystal clear.


  • Runs up to 8 hours on a charge

  • 6-Year warranty

  • Now featuring 16-channel UHF diversity wireless by Anchor Audio

  • 8-inch woofer and titanium-dome compression driver in tuned enclosure

  • Tough, injection-molded case is remarkably durable

  • Bass and treble controls

  • Features lead-acid batteries and built-in charger

  • Intergrated circuit amplifier with short circuit and thermal overload protection

  • External speaker output powers optional companion speaker

  • Daisy-chain ready, connect Liberty's together for expanded coverage

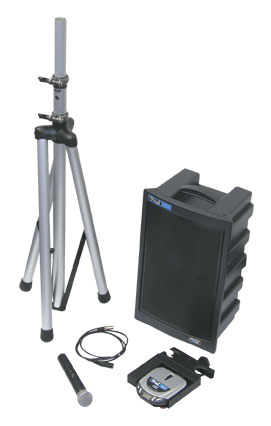

Liberty Sound System: Basic Package

LIB 6000 SPECIFICATIONS*
Rated power output 50 watts
MAX SPL @rated power projection mode 117 dB
Music mode 107 dB
Battery (two) 12 volt rechargeable, 3.0 AH (7.0 AH with "H" option)
General Sensitivity for Rated Output
Microphone: -52 dBV (2.5 mVrms)
Line: -14 dBV (200mVrms)
Frequency Response
Music Mode 60 Hz -15kHz ± 3dB
Projection Mode +10 dB from 1.5k - 12 kHz
Mic Inputs Lo-Z, balanced, phantom-powered, XLR
Line Input Hi-Z, unbalanced, 1/4" phone
Line output (post fader) buffered, 600Ω, 1/4" phone
A/C power requirements 110-125 Vac, 50/60 Hz, 50W Max 210-240 Vac, 50/60 Hz, 50W Max
Dimensions (HWD):  22.5 x 13 x 10", 56 x 33 x 26 cm
Weight:  LIB 6000: 36 lb, 16 kg; LIB 6000H: 44 lb, 20 kg

*specifications subject to change without notice

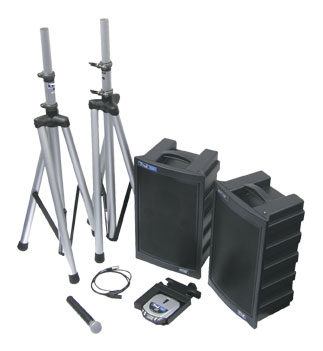

Liberty Sound System: Deluxe Package

 ACCESSORIES
LIB-6001 Unpowered companion speaker
FL-4500 Admiral Lectern
MIC-90 Handheld Mic; balanced, Lo-Z
SS-550 Heavy-duty speaker stand
VL-45 Storage Cover
HC-1650L/X Custom Traveling Hard Case
SC-50 50' speaker cable for LIB-6001



OPTIONS/WIRELESS

"U2" option Two Wireless UHF receivers
"U3" option Three Wireless UHF receivers
"HCU1" option HD batteries, CD player & UHF
"HTU1" option HD batteries, Tape player & UHF
WH-3000 Handheld wireless microphone/transmitter
WB-3000 Wireless body-pack transmitter
Microphone option include: Lapel/LM-3000, Collar/CM-3000 and Headband/HBM-3000

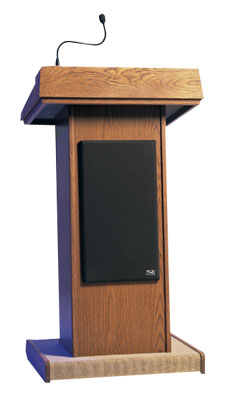

Admiral Lectern System

  • Connects to your existing P.A. system via XLR mic connector

  • Sensitive electret microphone picks up the most soft-spoken presenters

  • Shock-absorbing mic mount lets you boost the volume without adding feedback or vibration nboice

  • Rich, golden oak surfaces and solid oak trim

  • Console designed to safely hold Xtreme, Liberty or Voyager sound system in place

  • Microphone mounted on detachable 18" gooseneck

  • Tilt-n-roll casters for easy transport

  • Dual-intensity reading light

  • Mic cable with XLR connector routed to center console for easy access

  • 6-year warranty!

  • Made in the U.S,A!
ACCESSORIES
LC-400 Padded nylon slipcover
LL-400 Reading light
LM-618 Gooseneck microphone 24" with XLR connector
ASM-A Microphone shocmount kit
ELB Console modification kit for Explorer and Voyager sound systems



 MODELS
FL-4000   Lectern without sound system
FL-4500

Lectern with front speaker grill, mic & shockmount
LK-LIB   Lectern with Liberty Sound System and reading light
LK-XTR   Lectern with Xtreme Sound System and reading light
FL-4500 SPECIFICATIONS*
Microphone* (LM-618)  electret-type (*requires 9-52 Volts DC phantom power
Reading light (option) dual-intensity; operates on 110 Volts AC

Dimensions
Total (HWD): 46 x 25 x 20", 117 x 64 x 51 cm
Table top (WD) 23 x 18", 58 x 46 cm
console cavity (HWD) 22 x 13 x 10", 56 x 33 x 25 cm
Weight: 65 lb, 29 kg

*specifications subject to change without notice
